Retaining Wall Design, Repair, Retrofit, and Damage Assessment (Since 1991 to Present)

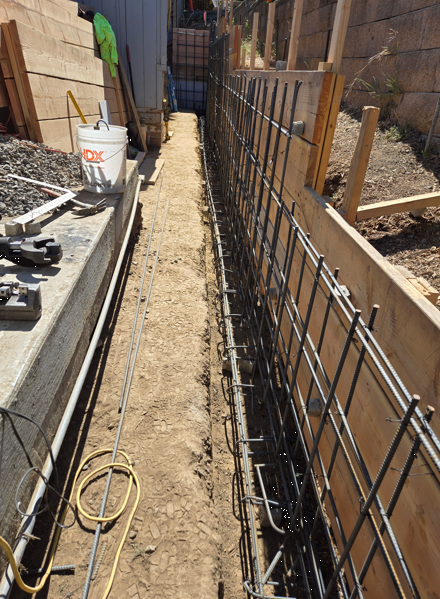

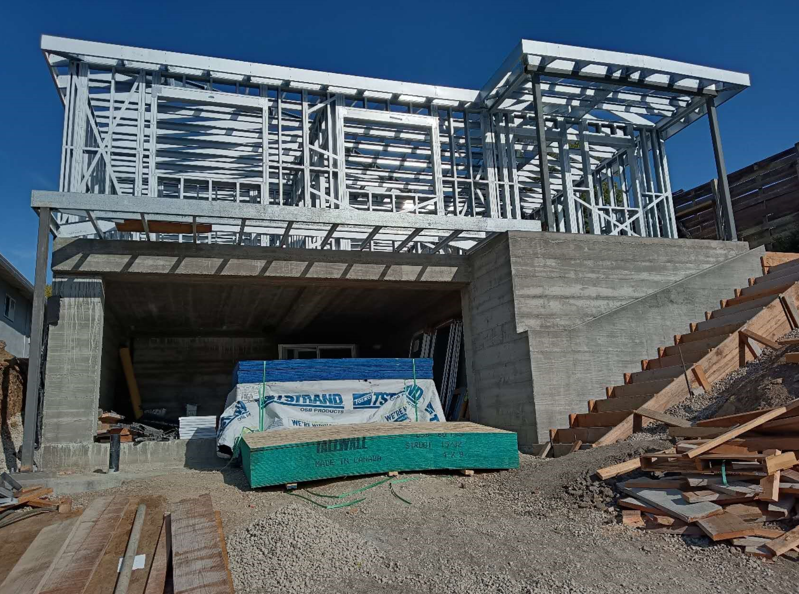

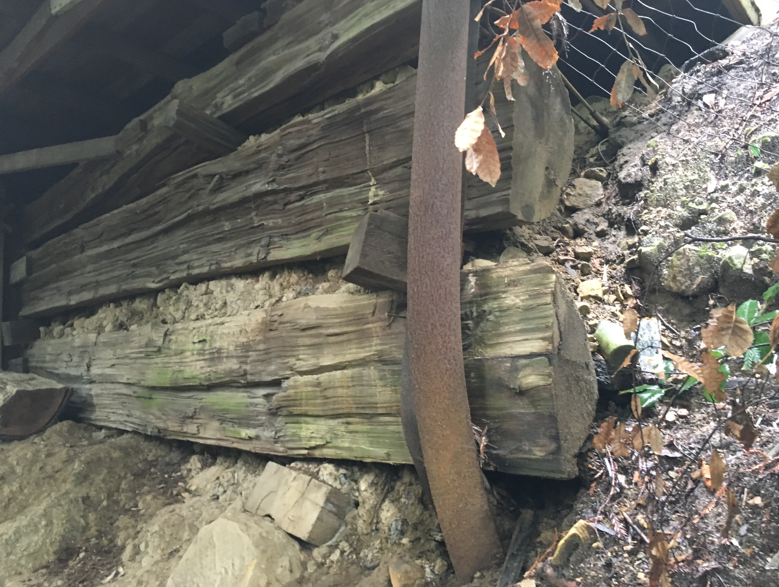

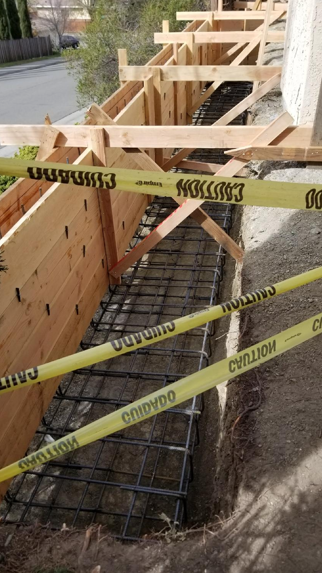

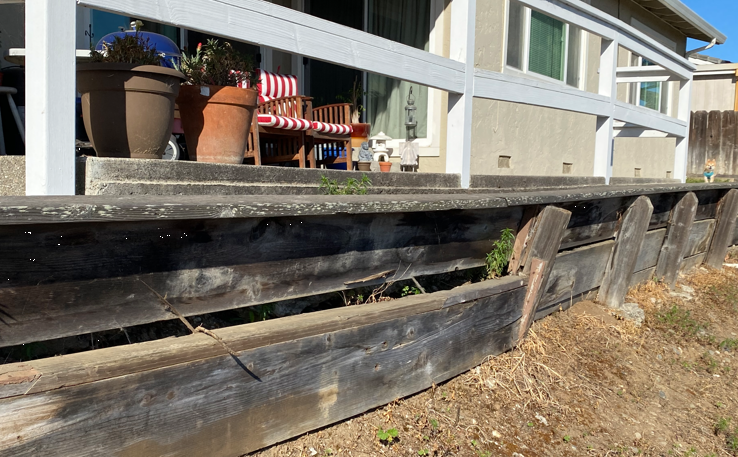

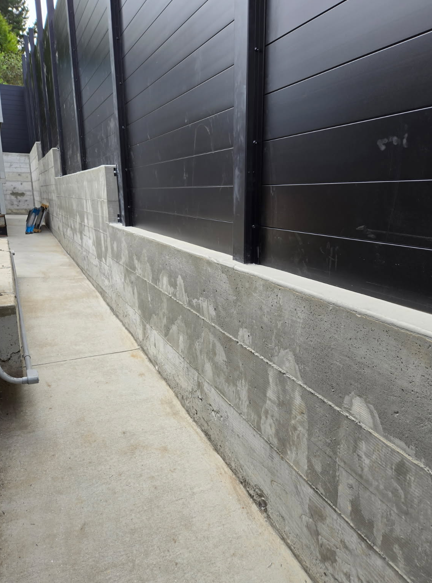

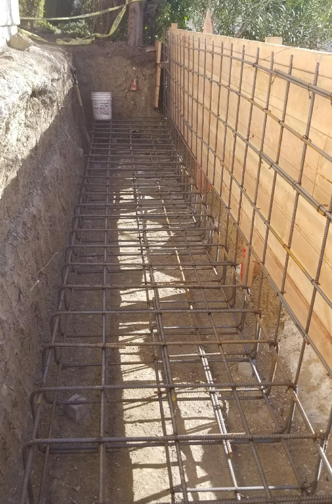

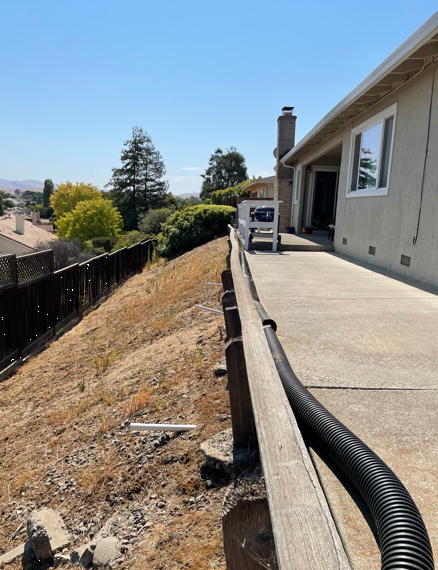

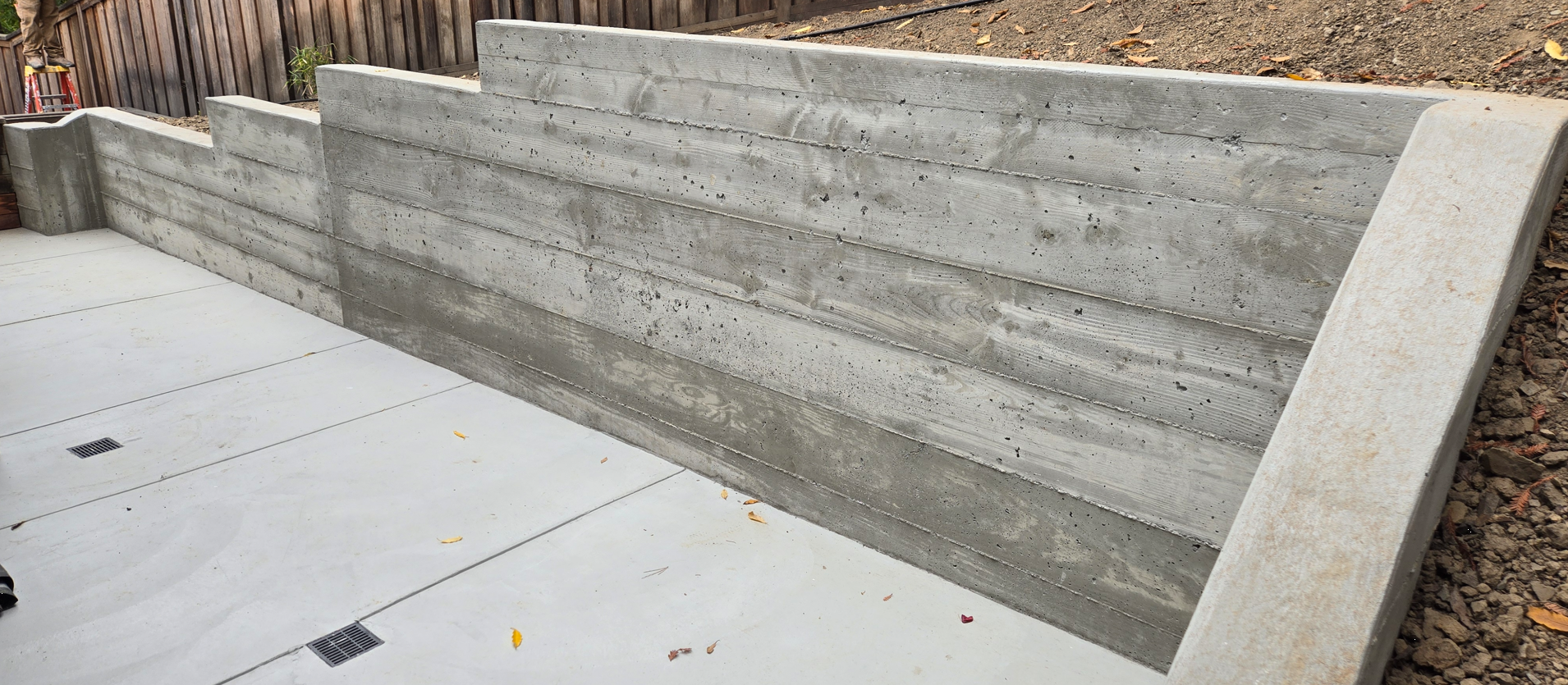

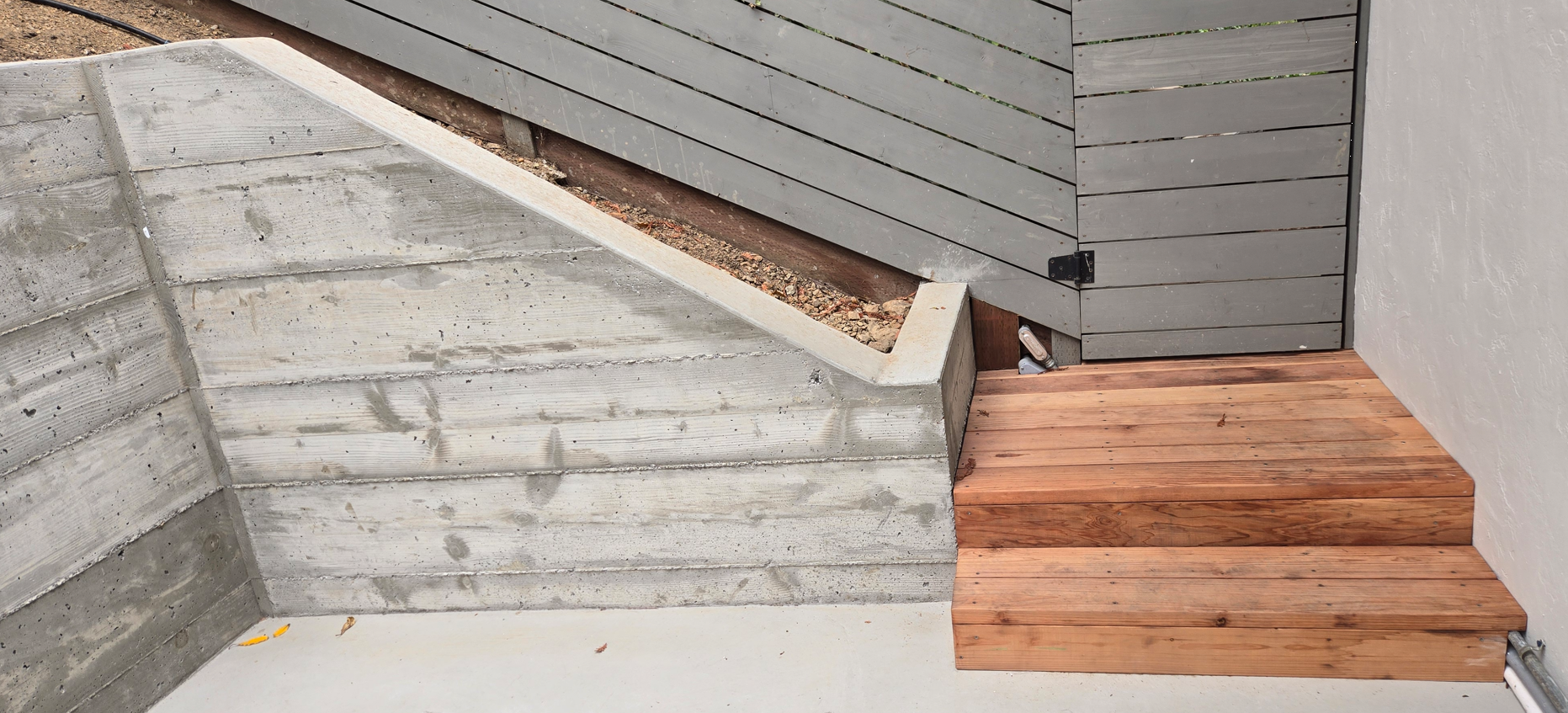

Residential Concrete Retaining WallResidential Concrete Retaining WallInspection and repair of the Wood retaining wallInspection and repair of the Wood retaining wallResidential Concrete Retaining WallCommercial Concrete Retaining WallCommercial Concrete Retaining Wall
Description:
Design of reinforced concrete retaining walls (3’ to 60’) using formwork and poured concrete or shotcrete.
Reinforced Soil Retaining Wall System.
Design of interlock, CMU, or masonry (gravity) retaining walls.
Design of soil nailing systems with shotcrete.
Design of gabion (gravity) walls.
Design of wood retaining walls.
Design of terrace retaining wall systems per California ordinance requirements.
Cofferdam walls.
Walls over pier foundations.
Walls over regular foundations.
Quay/sea walls.
Steel sheet-pile retaining walls.
Pile-supported retaining walls.
Bridge abutment design.
Type of Wall Analysis:
Lateral soil pressure analysis (at-rest/active) based on architectural conditions and project requirements.
Advanced seismic design using Mononobe–Okabe and AASHTO methods, including pore-water pressure by the Westergaard method.
Hydrostatic/hydrodynamic design for river water pressure.
Quay/sea-wall design for wave force and ocean currents.
Hillside terrace-wall force distribution.
Type of Services:
Full-scope Design
Full-scope Retrofit design
Damage assessment
Full-scope Damage repair design
Inspection
Owner/Client: Private and Government Sectors
Ordered by: Owners, Contractors, and Government Agencies
Lead Engineer: Dr. Amin Ghafooripour
Locations (U.S.): Mill Valley, San Anselmo, Needles, Hollister, Orinda, El Sobrante, San Francisco, San Rafael, Oakland, San Jose, Belmont, Los Gatos
International: Tehran, Arak, Monj, Abu Musa Island (Persian Gulf)
Date of Project: Since 1991 to Present
Padir Project #: 1334, 1307, 1049, 1026, 1108, 688, 453, 438, 359, 59, 90, 96, 133, 144, 166, 539, 811, 851

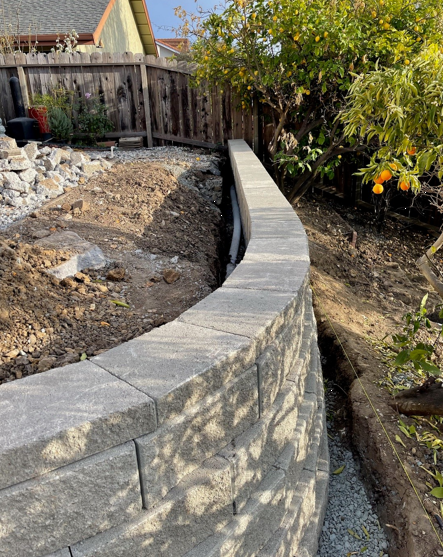

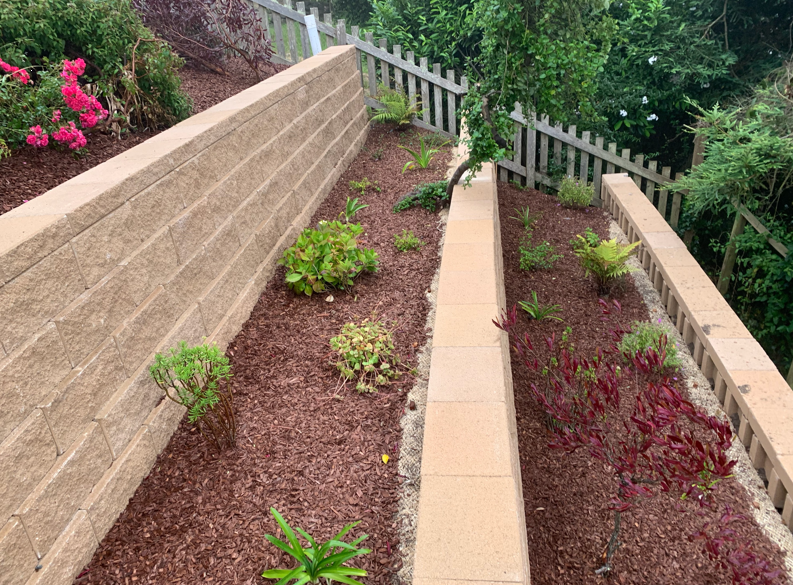

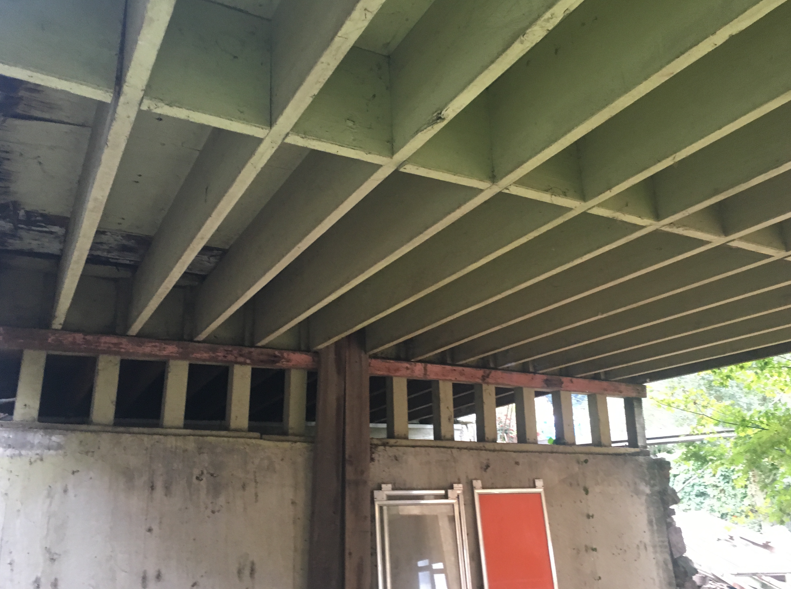

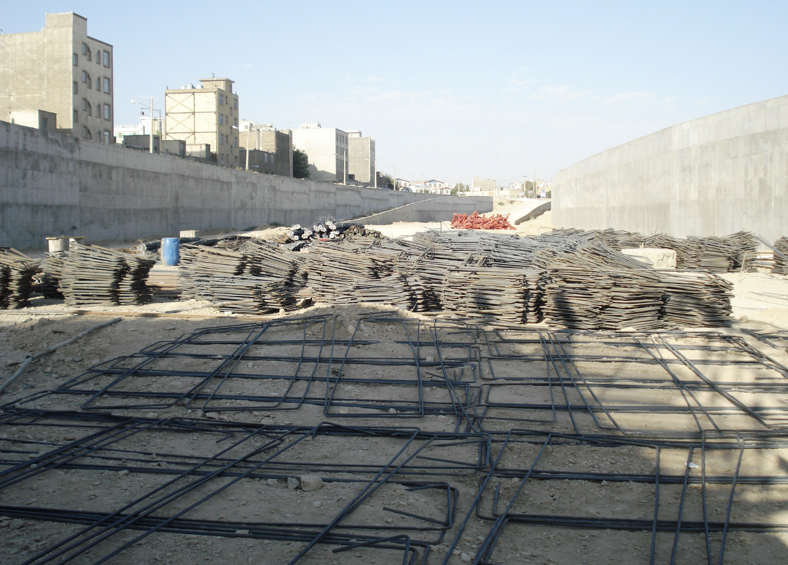

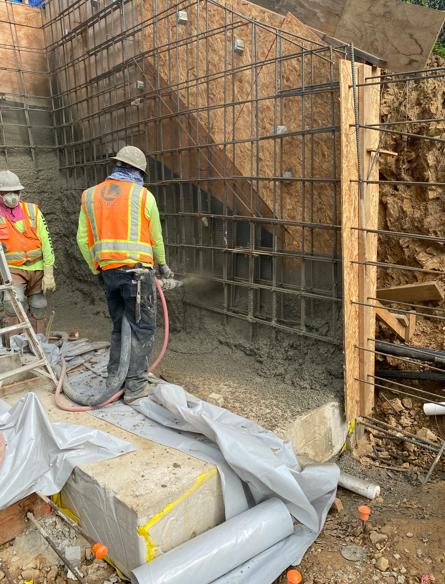

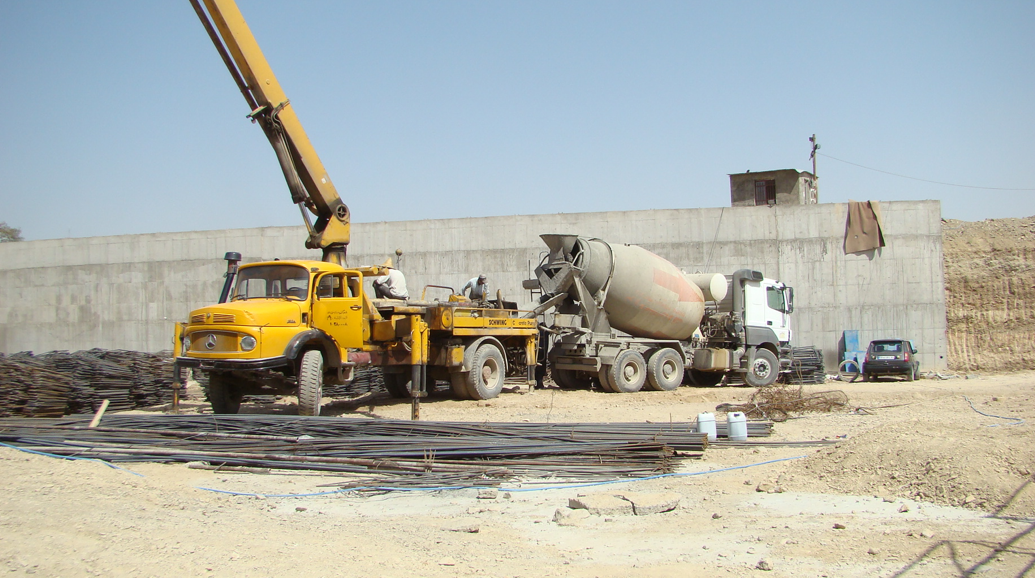

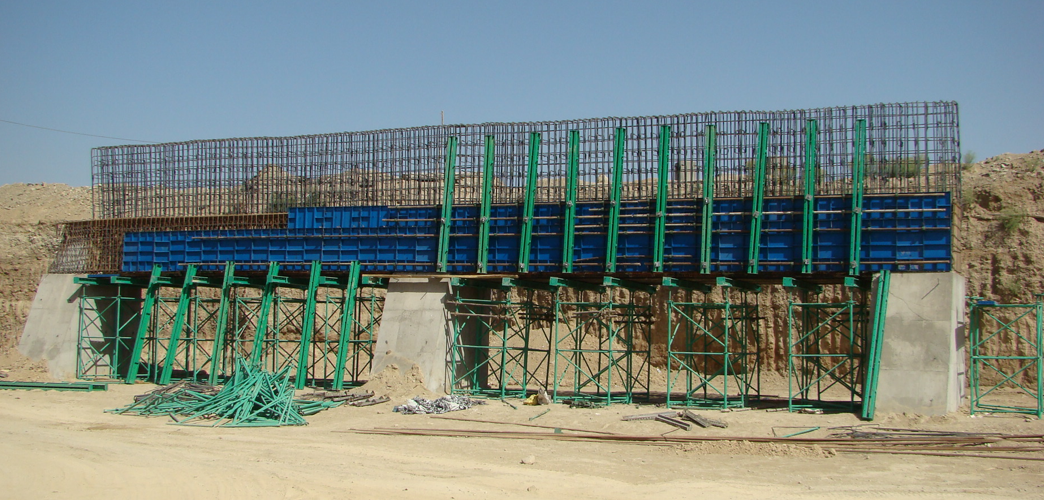

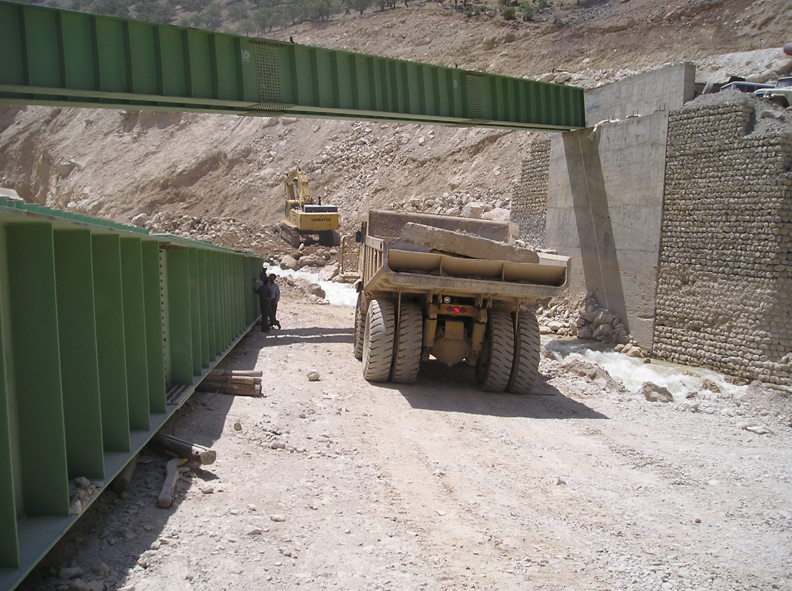

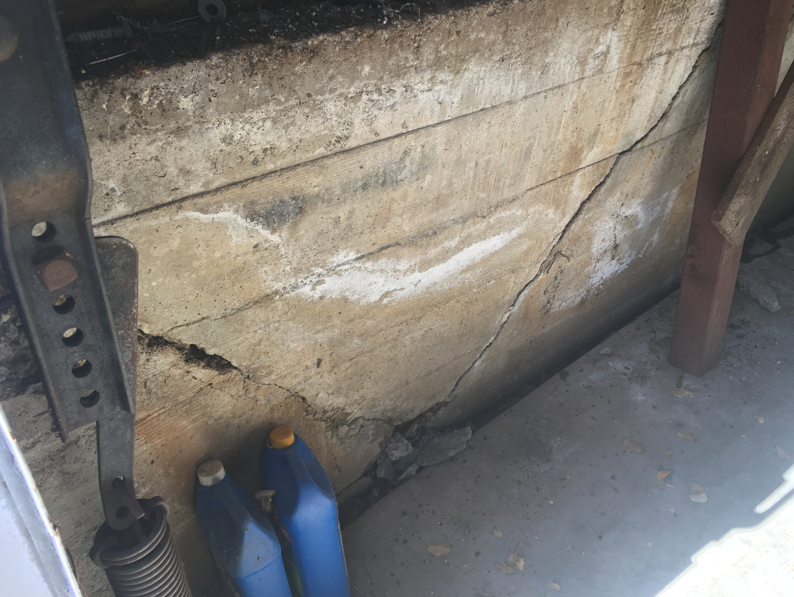

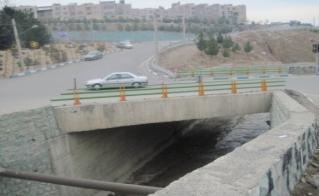

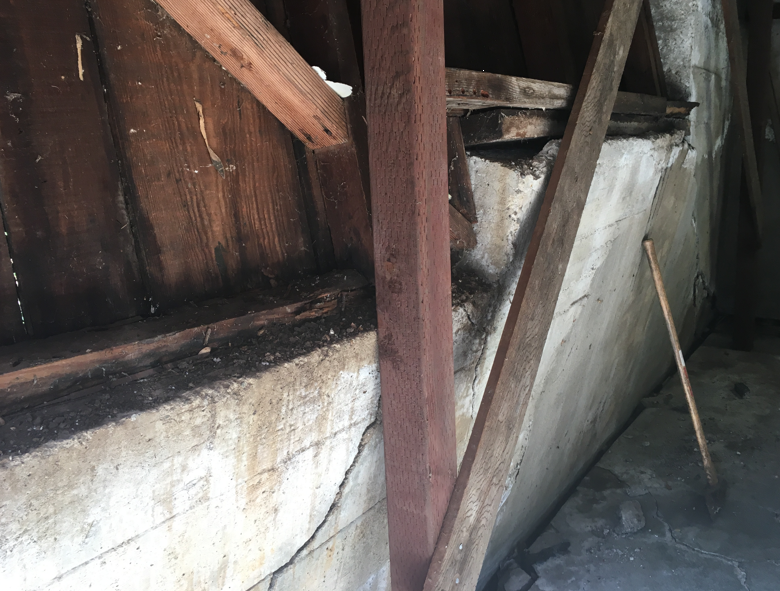

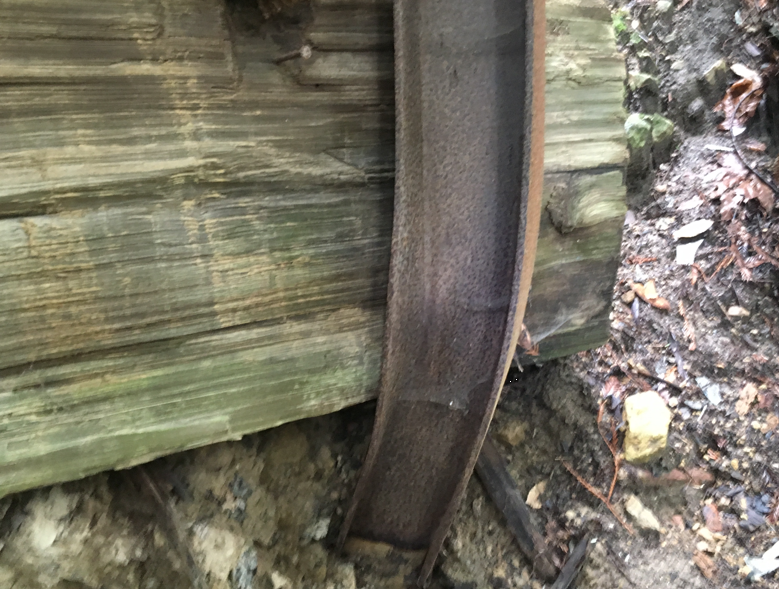

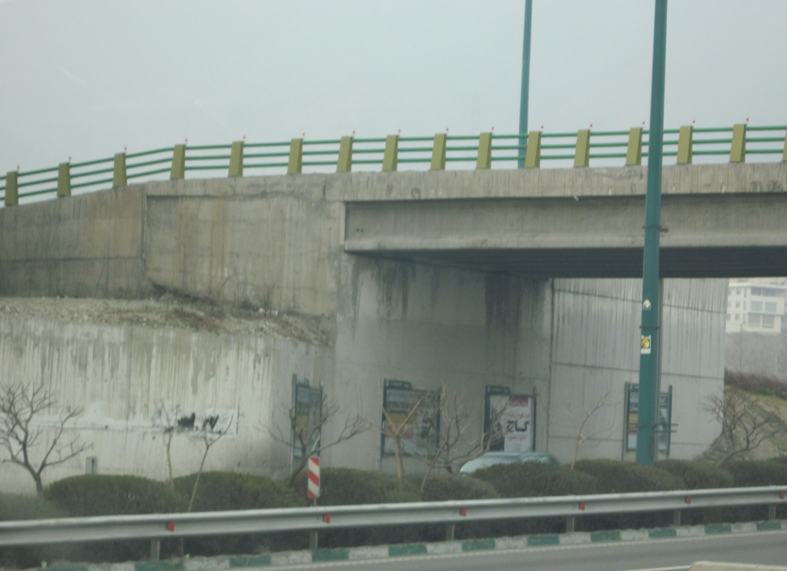

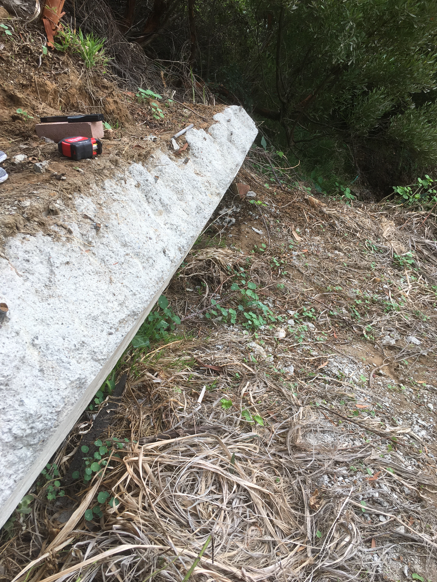

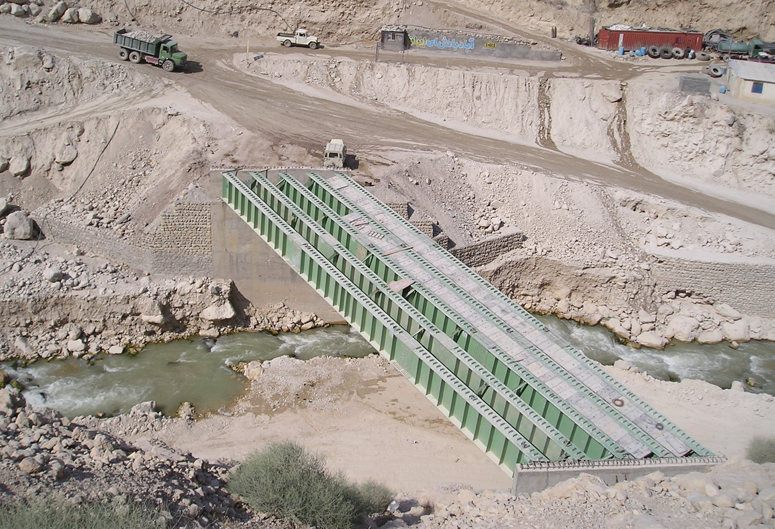

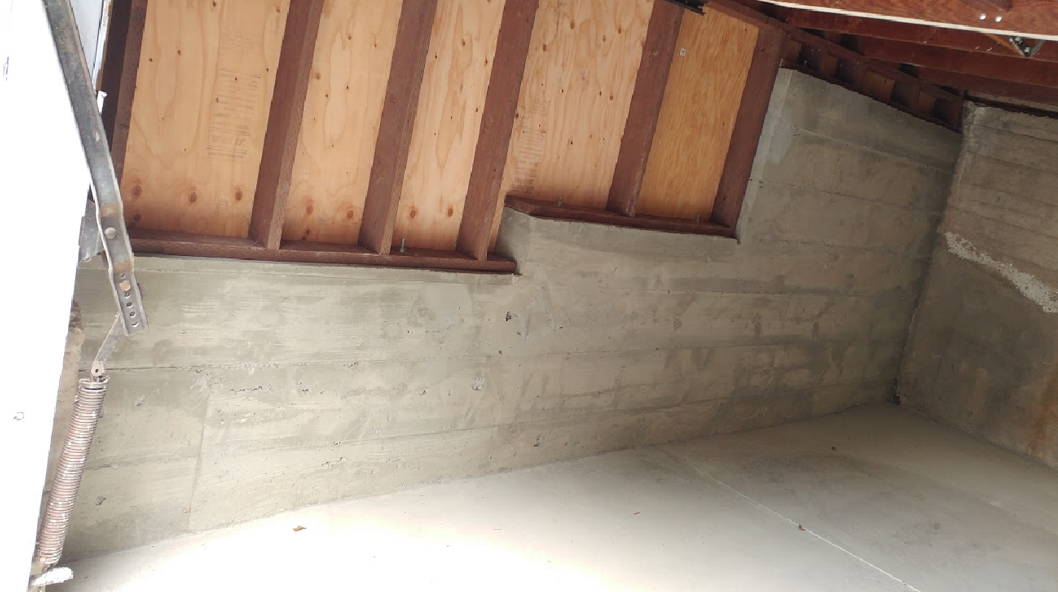

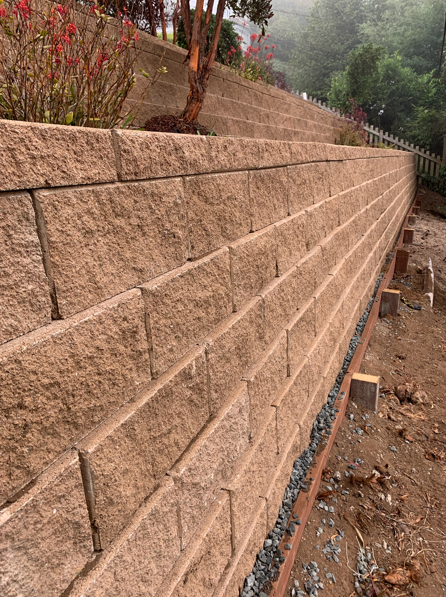

Terrace system, Interlock wall systemInspection and Damage assessment of the failed retaining wallsQuay wall/Sea wall; Steel Sheet pile retaining walls; Pile supported retaining wallsQuay wall/Sea wall; Steel Sheet pile retaining walls; Pile supported retaining wallsBridge AbutmentBridge AbutmentBeforeBeforeAfter — Repair and Retrofit of the cracked wallsBridge Abutment in the RiverHighway Retaining Wall and Bridge AbutmentBridge Abutment in the RiverBridge Open Abutment in the HighwayHighway Retaining WallRetaining Wall with Shotcrete TechnologyHighway Retaining WallHighway Retaining WallInterlock/CMU WallEvaluation and Damage Assessment of a failed wallReinforced Soil Retaining Wall SystemReinforced Soil Retaining Wall System
Reinforced Soil in Yadegar Highway (1996–2001)
Reinforced Soil System during Construction
Description: Yadegar Imam Highway was divided into five parts, and each part was designed by consulting engineers. 5 kilometers of the highway were designed between Eyvanak and Eassar streets. This section includes 3 bridges (Sarve, Poonak Bakhtari, and Eyvanak), three interchanges, one intersection, a shallow water drainage system, lighting, geometrical and pavement design of the highway, and retaining structures. The project was inaugurated by the President of Iran in 2001. Reinforced soil was designed by Dr. Amin Ghafooripour and checked by Dr. Behnia (Professor at Tehran University). Constructed by Khak Mosallah Company with modifications, this system replaced abutments and retaining walls at the Poonak Bakhtari bridge.
Type of order: Full scope consultant services (preliminary design and reports, contract drawings and calculations, contract procedures, supervision)
1. Geometric design of the highway
2. Asphalt pavement design
3. Traffic striping and signage
4. Stormwater drainage system
5. Interchange design (ramps and loops)
6. Highway lighting design
7. Bridge design (three bridges and interchanges)
8. Reinforced soil design
9. Retaining wall design
10. Sidewalk design
Owner/Client: Municipality of Tehran, District 2
Ordered by: Municipality of Tehran, District 2
Lead Engineer: Dr. Amin Ghafooripour
Project manager: Dr. Amin Ghafooripour
Architect: Dr. Amin Ghafooripour
Structural/Civil Eng.: Dr. Amin Ghafooripour (Structural designer of bridges and reinforced soil), Nastaran Ashtari (Highway designer and coordinator)
