PERGOLA, GAZEBO, TRESTLE/TRELLIS, AND CANOPY DESIGN
Pergola, Gazebo, Trestle/Trellis, Canopy Design, Repair, Retrofit, and Damage Assessment (Since 2016 to Present)

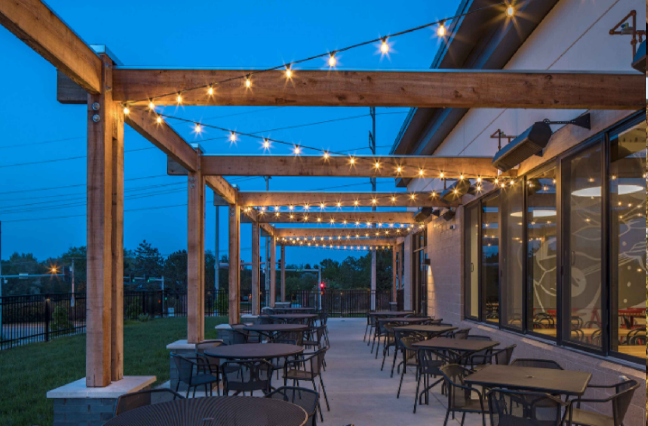

Aluminum Gazebo in San FranciscoDeck-Pergola in San JoseCommercial Trellis in San JosePergola

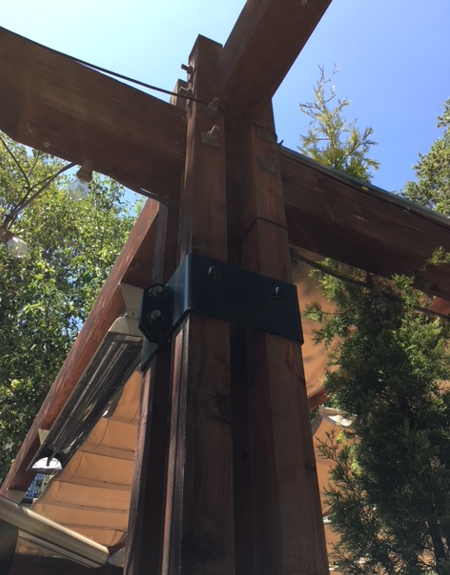

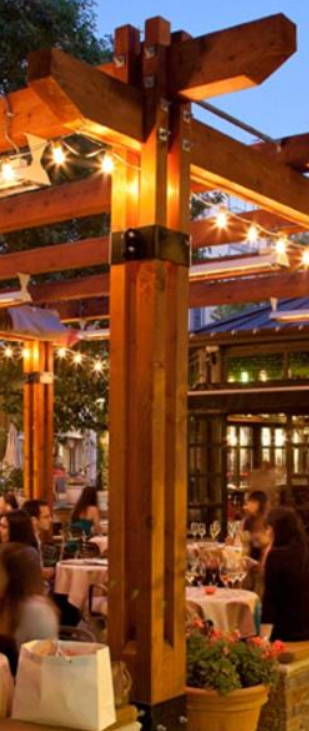

(This is not the actual picture of the project; we delivered a similar design for the pergola posts and structure)
Description:
Design of the Pergola, Gazebo, Trestle/Trellis.
Design with wood, aluminum, and steel structures.
Repair plan of the Pergola, Gazebo, Trestle/Trellis.
Pergola, Gazebo, Trestle/Trellis inspection, damage assessment, and retrofit.
Type of Pergola, Gazebo, Trestle Analysis:
Design over the pole foundation as a cantilever structure.
Design with knee bracings.
Type of Services:
Full-scope Design
Full-scope Retrofit design
Damage assessment
Full-scope Damage repair design
Inspection
Owner/Client: Private sector
Ordered by: Owners, and Contractors
Lead Engineer: Dr. Amin Ghafooripour
Locations: Mill Valley, San Anselmo, Needles, Hollister, Orinda, El Sobrante, San Francisco, San Rafael, Oakland, San Jose, Belmont, Los Gatos, Redwood City, Daly City, Sacramento Area, Hollister
Date of Project: Since 2016 to Present
Padir Project #: 785, 345, 1095, 791, 1241, 971, 712, 1114, 541

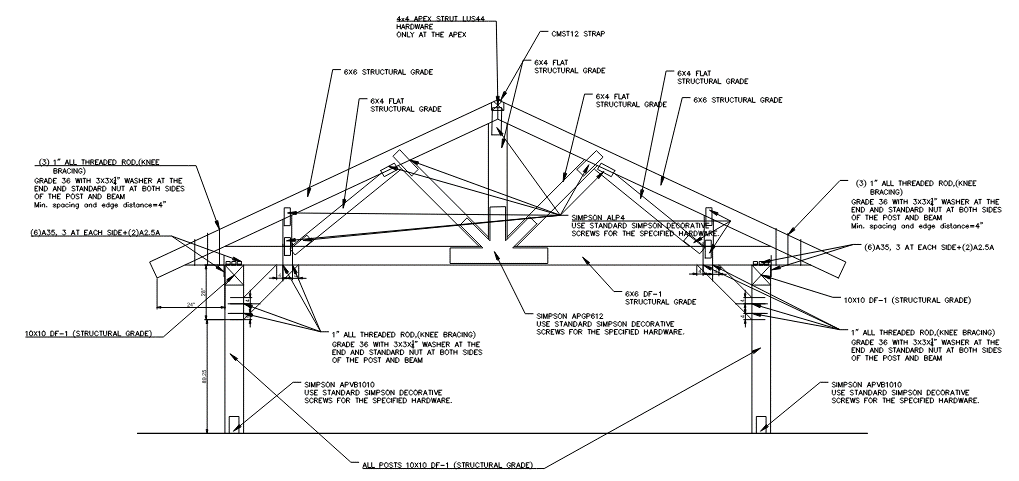

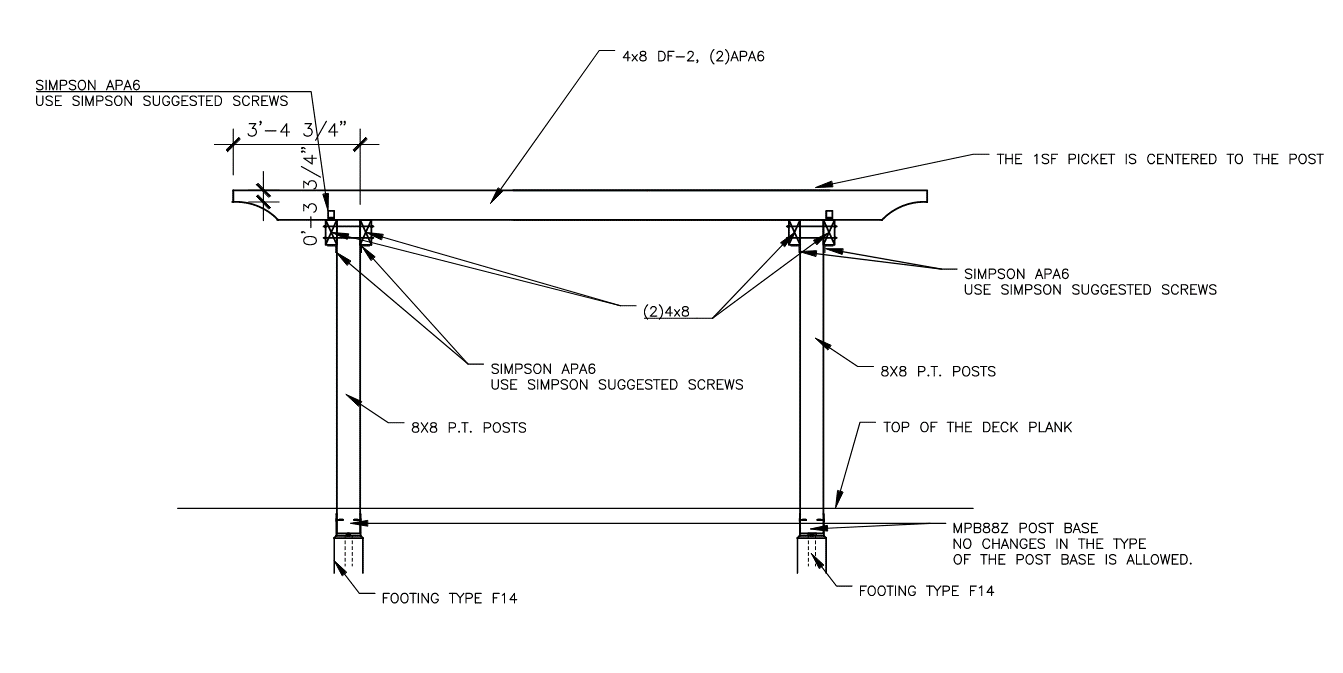

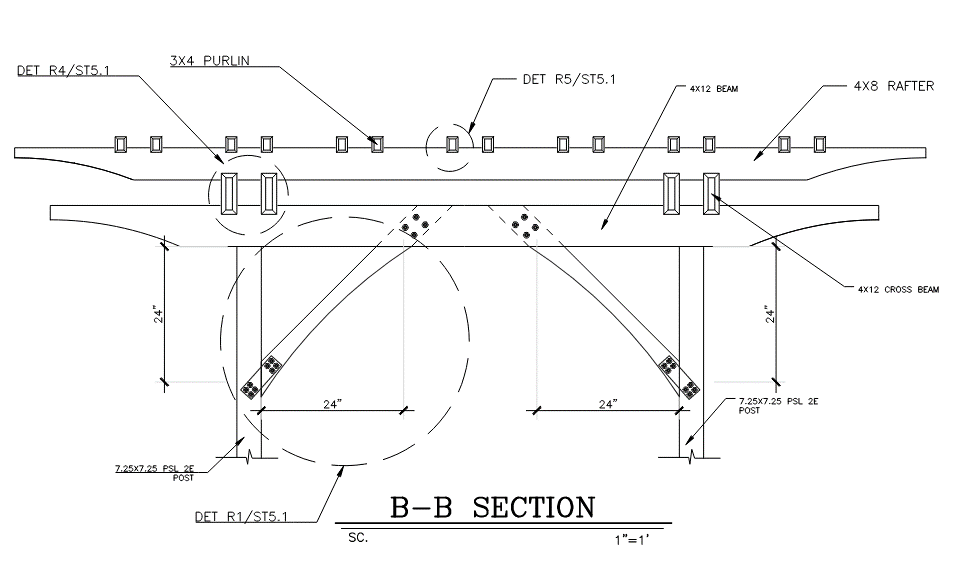

Pergola design without Knee bracingsPergola with knee bracingGazebo with truss structure
KELLOGG’S FACTORY CANOPY DESIGN (2018)
Description: The project was conducted under Fortress Structural Engineering Inc., which is the primary consultant and consists of:

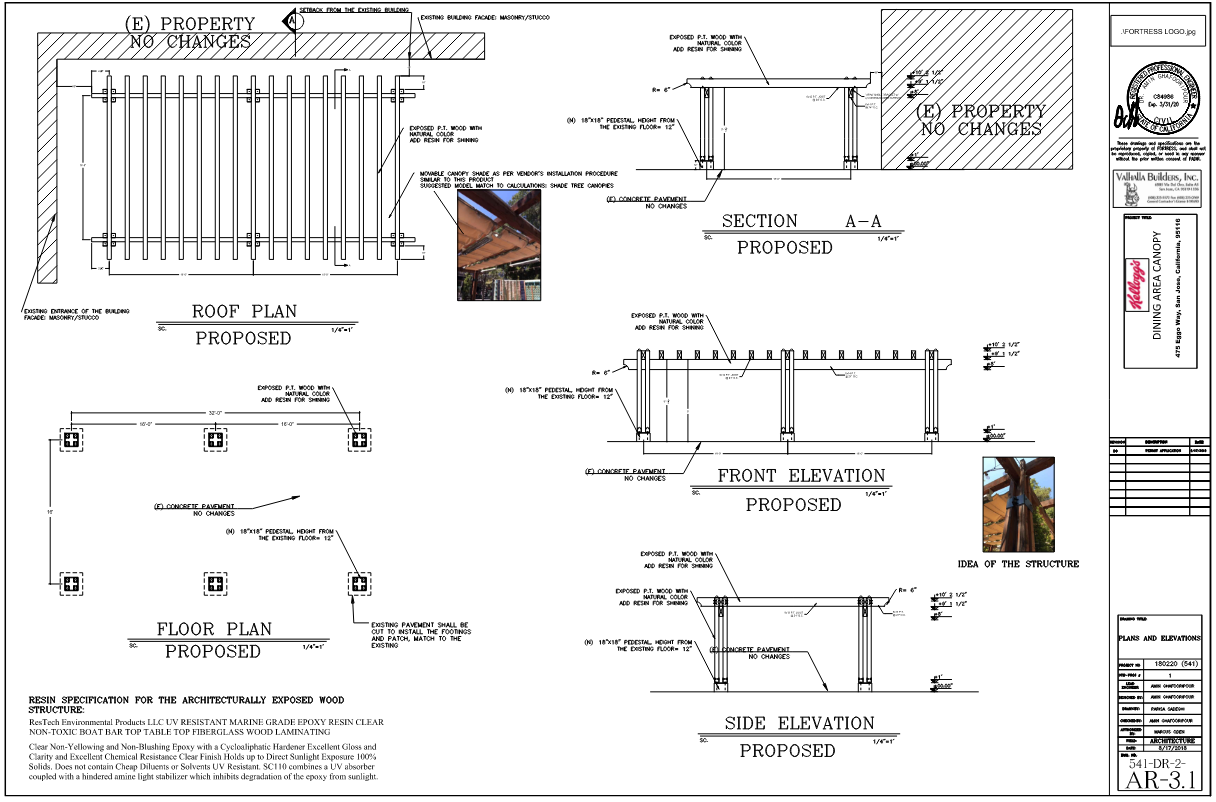

Designing the canopy for the factory in San Jose
Type of order: Full scope Structural Design of Factory as per the above scope
Owner/Client: One of the Kellogg’s contractors (Confidential)
Ordered by: Fortress Structural Engineering Inc. (copyright of the project belongs to this company)
Project Manager/Fortress President: Marcus Oden
Lead Engineer under Fortress: Amin Ghafooripour
Architect: Fortress SE Inc.
Structural/Civil Eng. under Fortress: Amin Ghafooripour
